YD-1205 Surface Mounted LED Aluminium Profile | Ofly

YD-1205
Place of Origin: Shenzhen, China
Brand Name: OFLY
Certification: CE, ROHS
Delivery Time: 5-7 Days
Warranty: 3-5years
Quantity:
Contact Now

A slim 17.3 × 8.2 mm anodised aluminium channel for surface-mounted LED strip installations. Designed for LED tape up to 12 mm wide, in regular anodised silver finish, with frosted, opal or clear PC diffuser options. Cut to length, no minimum order, CE & RoHS certified.

Surface mounted17.3 × 8.2 mmFor LED tape up to 12 mmCE & RoHSCut to length · No MOQ
Ofly YD-1205 surface mounted LED aluminium profile with frosted PC diffuser and white plastic end cap
Model
YD-1205
Profile size
17.3 × 8.2 mm
For LED tape
up to 12 mm
Length
cut to size, max 4 m
Material
6063-T5 aluminium
Finish
Anodised silver
Diffuser
PC: frosted / opal / clear/ black
MOQ
1 piece

Built for slim, surface-mounted LED tape lighting

The YD-1205 is a compact surface-mounted LED aluminium profile developed for architectural and commercial lighting projects where the channel needs to sit on the surface rather than be recessed. The narrow 17.3 mm footprint keeps the visual line slim, while the 8.2 mm internal cavity accepts the most common LED strip widths on the European market — 8 mm and 10 mm COB tape, plus 12 mm wide single-row strips.

Made from 6063-T5 aluminium and anodised in regular silver, the YD-1205 acts as a passive heatsink for the LED strip, extending diode lifetime and reducing light decay. The supplied PC diffuser delivers a soft, dot-free line of light and protects the LED strip from dust and physical contact.

Typical uses include under-cabinet task lighting, cove lighting, retail shelving, wardrobe interiors, kickboards, signage backlighting and stair nosings.

  • Slim 17.3 mm line — discreet on plasterboard, MDF, stone or ceramic surfaces.
  • Universal LED strip fit — internal channel 12.5 mm, accepts LED tape up to 12 mm.
  • Three diffuser choices — clear, frosted or opal PC for any aesthetic.
  • Cut to length — no minimum order quantity, finished in our Shenzhen workshop.
YD-1205 cross-section diagram showing 17.3 mm outer width, 8.2 mm overall height and 12.5 mm internal channel width
Cross-section. 17.3 mm overall width × 8.2 mm overall height. The 12.5 mm inner channel accepts LED strips up to 12 mm wide, with the PC diffuser snapping into the side grooves.

Technical specifications

All values are nominal and refer to the standard YD-1205 in regular anodised silver. Custom RAL finishes, custom lengths and pre-applied 3M VHB tape are available on request.

ModelYD-1205
Profile typeSurface mounted LED aluminium extrusion
External dimensions (W × H)17.3 × 8.2 mm
Internal channel width12.5 mm (for LED strip up to 12 mm)
Stock length2/3/4 metres standard; cut to length on request
Maximum single-piece length4 metres
Weight≈ 135 g/m (anodised aluminium)
Material6063-T5 aluminium alloy
Standard finishRegular anodised silver (≈ 12 µm)
Optional finishesAnodised black, anodised bronze, white RAL 9016 powder coat (MOQ applies)
Diffuser materialUV-stabilised polycarbonate (PC)
Diffuser optionsFrosted · Opal · Clear · Black · Milky
Diffuser transmission (typ.)Clear ≈ 92 % · Frosted ≈ 80 % · Opal ≈ 65 % · Black≈ 20 % · Milky≈ 50 %
Mounting methodStainless steel or plastic clip, 3M VHB tape, or direct screw through channel
Cutting tolerance± 0.5 mm; mitre cuts available on request
Operating temperature− 20 °C to + 60 °C (with PC diffuser)
IP rating (profile body)IP20 (indoor).
CertificationsCE · RoHS (test report available on request)
Compatible LED strip typesConstant-voltage 12 V / 24 V LED tape, COB and SMD, single-row up to 12 mm wide, max 14.4 W/m continuous operation
Minimum order quantity1 piece (cut to length)
Country of originShenzhen, China (Ofly)

Choose the right diffuser for the job

All three PC diffusers clip into the side grooves without tools and can be replaced at any time. Choose by light effect, not by efficiency alone.

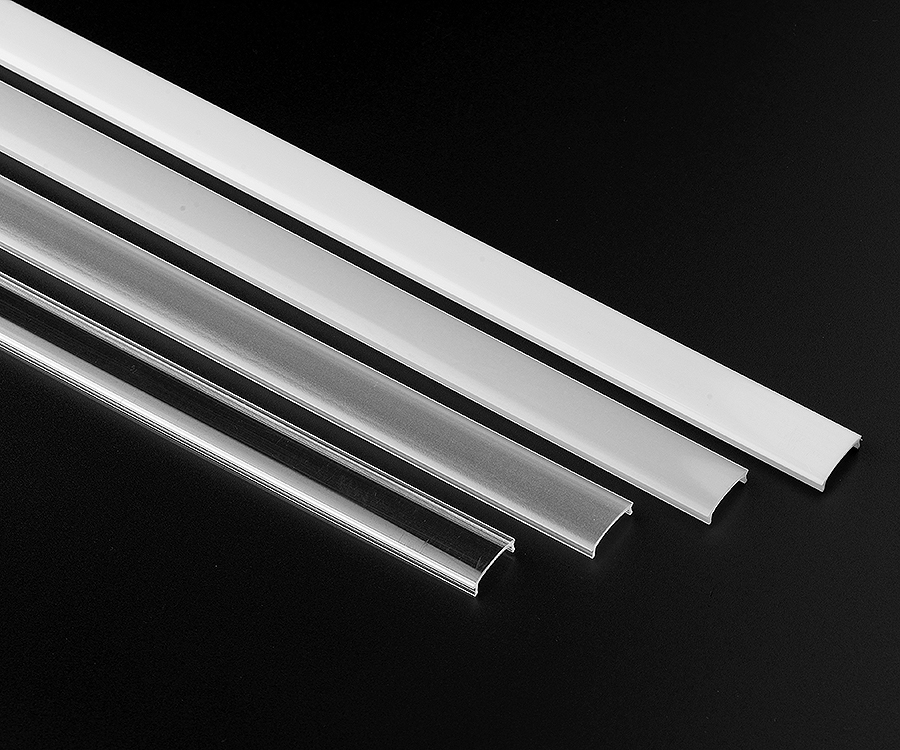

Comparison of clear, frosted and opal PC diffusers for YD-1205

Clear PC diffuser

Highest light output (≈ 92 % transmission). Individual LED dots remain visible — ideal for retail display lighting.

Close-up detail view of clear, frosted and opal PC diffusers

Frosted PC diffuser

Balanced option (≈ 80 % transmission). Softens hotspots and improves uniformity. Best all-rounder.

Opal PC diffuser for YD-1205 hiding individual LED diodes

Opal PC diffuser

Most diffused (≈ 65 % transmission). Hides LED dots for a continuous dot-free line.

Mounting accessories included or available

The YD-1205 ships with the selected diffuser and the end-caps or clips you choose at quotation.

Stainless steel mounting clip for YD-1205 surface mounted LED profile

Stainless steel mounting clip

Snap-on, corrosion-resistant.

Clear polycarbonate mounting clip for YD-1205

Polycarbonate mounting clip

Transparent clip, almost invisile.

White plastic end cap with cable entry hole for YD-1205

End caps — with cable entry

Snap-fit PC end caps in grey.



Where the YD-1205 is used

A compact surface-mounted profile that disappears into the architecture with an opal diffuser, and reads as a refined detail with a clear diffuser.

  • Under-cabinet task lightingKitchens, pantries, laundries — 5–8 W/m tape is ideal.
  • Cove and feature lightingAlong cornices for indirect washes of light.
  • Wardrobe and joinery interiorsSlim 17.3 mm line suits wardrobe doors.
  • Stair nosings and kickboardsRetrofits on existing stairs.
  • Retail display shelvingClean anodised finish for product highlights.
  • Signage backlightingDot-free line behind channel letters.

Frequently asked questions

What LED strip width does the YD-1205 fit?
Up to 12 mm wide, including the most common 8 mm and 10 mm COB and SMD tape on the European market. Internal channel measures 12.5 mm.
Maximum length and cut-to-size?
Max 4 m single piece. Cut to length, no MOQ. Mitre cuts available.
Which diffuser — frosted, opal or clear?
Clear = max output (retail). Opal = dot-free architectural. Frosted = balanced default.
How is the profile fixed?
Stainless steel or PC clips every 30–50 cm, or VHB tape, or direct countersunk screws.
CE / RoHS documentation?
Yes — Declaration of Conformity and RoHS test report supplied on request.
Lead time for orders?
3–5 working days ex-works; sea 25–35 days, air 7–10 days. EU buffer for 5-day dispatch.

Get a quote or a sample

Send your project details — length, diffuser, LED strip type, quantity and delivery city — and we reply the same working day with pricing and lead time.
