YD-2566 Mini LED Aluminium Profile — Recessed Mount
Brand Name: OFLY
Certification: CE, ROHS
Delivery Time: 5-7 Days
Warranty: 3-5years
YD-2566 Mini LED Aluminium Profile — Recessed Mount
Compact 7 × 8 mm mini LED aluminium profile in 6063-T5 with a 9 mm top flange for flush recessed mounting into a routed slot. Same triple optical configuration used across the entire Mini series — PC diffuser, reflector cup + lens, or reflector cup + black cover (all 100 mm modular). Designed for ≤ 4.7 mm flexible COB tape or CSP1208 rigid LED strip. Spring-clip fix, no screws, no adhesive. Cut to length, no MOQ, CE & RoHS certified.
- Model
- YD-2566
- Profile size
- 7 × 8 mm body + 9 mm flange
- Internal channel
- 4.8 mm
- For LED tape
- ≤ 4.7 mm flexible COB
- Rigid strip
- CSP1208 · 100 mm · 14 beads
- Length
- cut to size, max 4 m
- Material
- 6063-T5 aluminium
- Mount
- Recessed (spring-clip fit)
- MOQ
- 1 piece (no MOQ)
Flush recessed mounting with a single profile shape

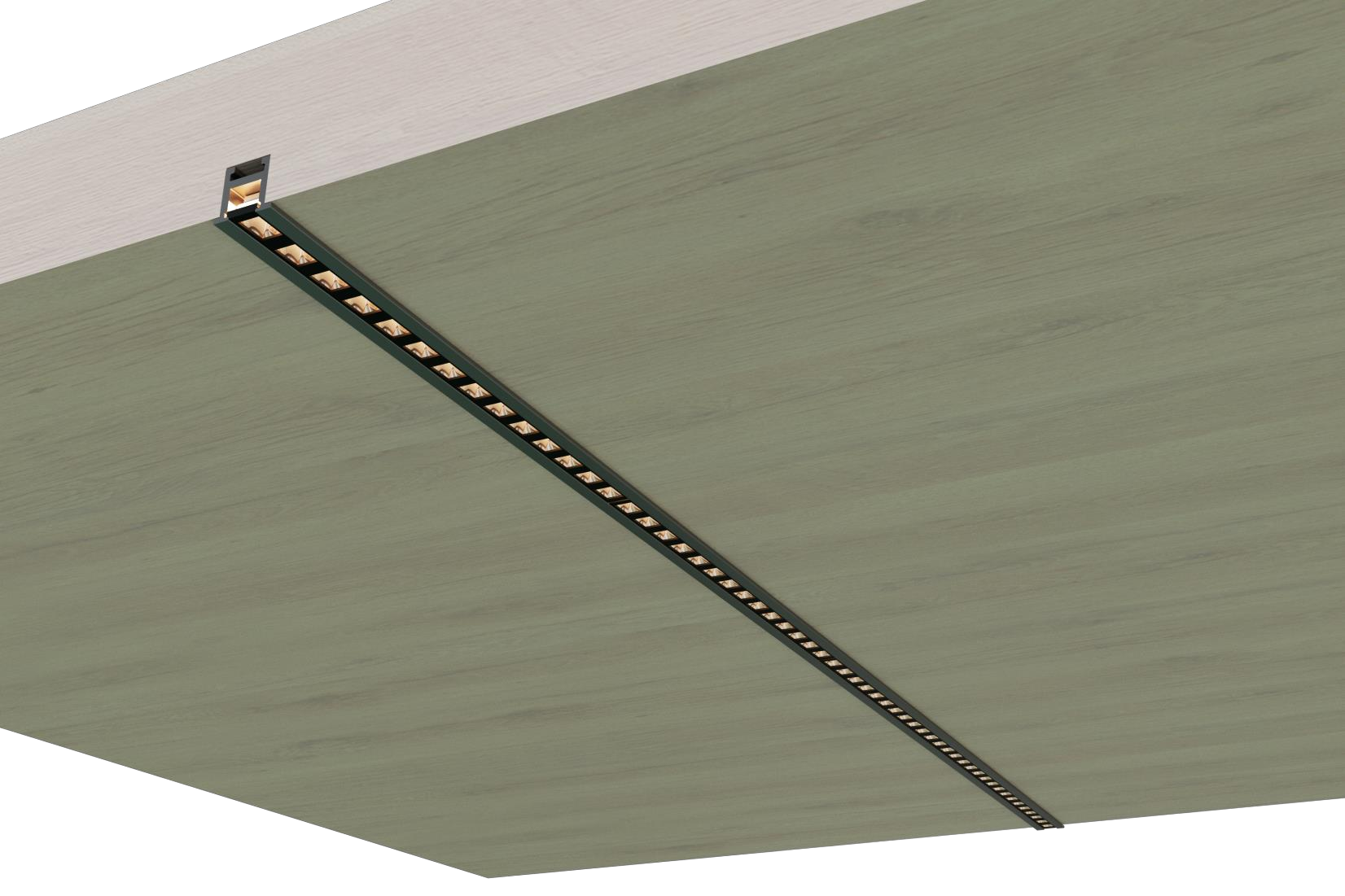

The YD-2566 is the recessed variant of the YD-2565. The aluminium body is identical — 7 × 8 mm profile, 4.8 mm internal channel — but the YD-2566 adds a 9 mm top flange that sits flush against the mounting surface when the profile is dropped into a routed slot. From the side, only the PC diffuser line is visible. From below, only the 9 mm flange is visible against the surface. The aluminium body itself is hidden inside the slot.

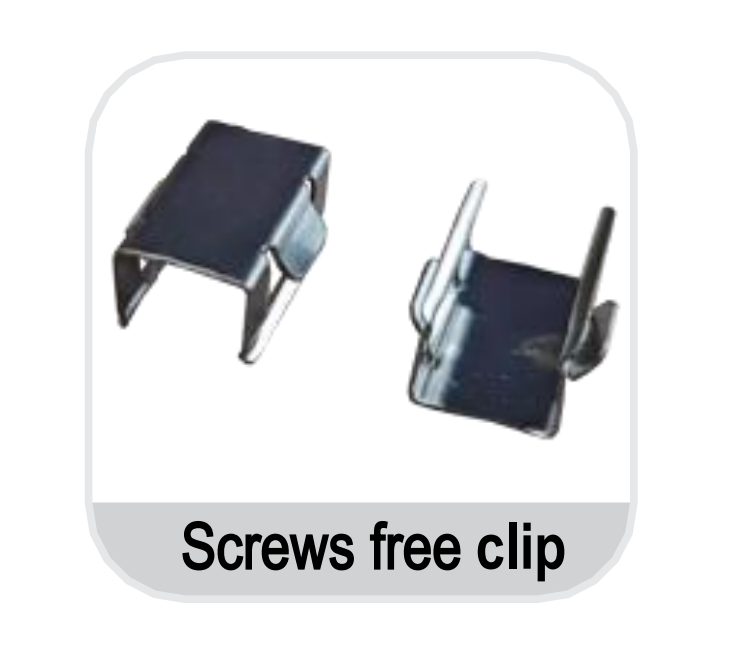

Fixing is by spring clips (the supplied 'Screws free clip') that grip the profile body inside the routed slot. No screws, no adhesive, no tools required for installation or removal — the profile can be lifted out with a flat-blade screwdriver for service or LED swap. This is the cleanest mounting option in the Mini series for projects where the channel should disappear into the architecture.
The YD-2566 uses the same triple optical configuration as the YD-2565 and YD-2575 — PC diffuser, reflector cup + lens, or reflector cup + black cover. All three optical modes are 100 mm modular, so a single accessory range covers the entire Mini series regardless of which profile is you. and the same double LED source (flexible COB tape or CSP1208 rigid strip) applies.
- Same body as YD-2565 — 7 × 8 mm, 4.8 mm channel. Same accessories, same optical system, same LED compatibility.
- 9 mm top flange — sits flush against the mounting surface, covers the slot edge for a clean trim line.
- Spring-clip recessed mount — drop into a 9 × 8 mm routed slot, no screws, no adhesive, no tools. Lift out with a flat-blade screwdriver for service.
- Triple optical configuration — PC diffuser / reflector cup + lens / reflector cup + black cover. 100 mm modular accessories.
- Dual LED compatibility — flexible COB / SMD tape for the PC diffuser; CSP1208 rigid strip for the cup / lens / cover.
- Cut to length, no MOQ — supplied in 2 m stock, cut to size on request.
Two LED modes — pick the right one before ordering
The YD-2566 supports two LED sources that determine which optical accessory you can use. Flexible COB tape and CSP1208 rigid strip cannot be mixed on the same cup. Pick one mode before you spec accessories.
Flexible COB / SMD tape
- LED tape ≤ 4.7 mm wide (3 mm / 4 mm COB recommended)
- PC diffuser — Clear, Frosted or Opal
- Soft dot-free line, low cost
- Not compatible with reflector cup / lens / black cover
CSP1208 rigid LED strip
- CSP1208 chip · 100 mm length · 14 beads / segment
- Square PC electrode, electroplated finish
- Pair with optical lens (narrow accent) or black PC cover (deep anti-glare UGR < 19)
- 100 mm modular — 10 segments per metre
Ordering tip: if you spec accessories first, lock in the LED source at the same time. Quote the rigid strip count (× 100 mm segments) together with the cup + lens/cover count to avoid mismatched shipments.
Three optical configurations from one profile
Same aluminium body, three optical outcomes. From soft diffuse line (Mode A) to premium anti-glare (Mode B). The YD-2566 shares this triple optical configuration with the YD-2565 and YD-2575 — so the same accessory SKUs cover the whole Mini series.
Recessed installation — 9 × 8 mm routed slot
Route a 9 mm wide × 8 mm deep slot in the mounting surface using a standard wood router, laminate trimmer or CNC mill. The YD-2566 drops into the slot and is held by the spring clips — no screws, no adhesive, no tools. The 9 mm top flange sits flush against the surface for a clean trim appearance.
Per-metre parts list
The YD-2566 ships ready for recessed mounting. The spring clips grip the profile body inside the routed slot; the end caps seal the channel ends. The reflector cup, lens and black cover accessories are shared with YD-2565 and YD-2575.
Per-metre parts list: 2 × spring clips (Screws free clip) · 2 × end caps · reflector cups / lenses / covers quote separately, per 100 mm module (same SKUs as YD-2565 and YD-2575). For a 1 m continuous anti-glare line: 10 × cup + 10 × lens/cover + 10 × CSP1208 strip.
Frequently asked questions
What LED source does the YD-2566 accept?
Two distinct modes: (a) flexible COB / SMD tape up to 4.7 mm wide for the standard PC diffuser (Clear / Frosted / Opal); (b) CSP1208 rigid LED strip, 100 mm length, 14 beads per segment, for the reflector-cup / lens / black-cover options. The two modes cannot be mixed on the same cup — flexible strip does not fit the cup/lens/cover accessories.
How is the YD-2566 installed?
Route a 9 mm wide × 8 mm deep slot in the mounting surface using a router, trimmer or CNC mill. The YD-2566 drops into the slot and is held by the spring clips on either side of the profile body — no screws, no adhesive. The 9 mm top flange sits flush against the surface for a clean trim appearance. To remove, lever the profile out with a flat-blade screwdriver.
How do I choose between YD-2565, YD-2566 and YD-2575?
YD-2565 is the entry-level mini profile — 7 × 8 mm, surface mounting or magnetic mounting, fastest install. YD-2566 is the recessed variant of YD-2565 — same body but with a 9 mm top flange, designed to drop into a routed slot for a fully flush, invisible-from-the-side look. YD-2575 is the larger advanced option — 8.6 × 7.3 mm with three mounting modes (surface / wall-lamp / 180° adjustable rotation). All three share the same triple optical configuration (PC diffuser / reflector cup + lens / reflector cup + black cover) and 100 mm modular accessories.
What slot dimensions does the YD-2566 require?
A 9 mm wide × 8 mm deep routed slot. This can be cut with a standard wood router, laminate trimmer or CNC mill — slot dimensions are not critical to within ±0.3 mm, the spring clips accommodate normal routing tolerance. The 9 mm flange then sits flush against the mounting surface and covers the slot edge.
Minimum cut length and tolerance?
Cut to any length; standard tolerance ±0.5 mm. Tighter tolerances available on request.
What is included in the accessories kit?
Two spring clips (labelled 'Screws free clip') and two end caps with cable holes per metre of profile. The spring clips grip the profile body inside the routed slot — no screws, no adhesive. The reflector cup, lens and black cover are quoted separately, priced per 100 mm module — same SKUs as YD-2565 and YD-2575.
Get a quote, datasheet or sample
Tell us your project length, mounting surface material (MDF / plywood / stone / plasterboard), LED source (flexible COB or CSP1208 rigid), and which optical configuration (PC diffuser / lens+cup / black cover+cup). We will reply with a per-100 mm accessory breakdown and a sample lead time within one working day.
- Cut-to-length service · ±0.5 mm standard tolerance
- Spring-clip recessed mounting into a 9 × 8 mm routed slot — no screws, no adhesive
- Same 100 mm optical SKUs as YD-2565 and YD-2575 — single accessory range across the Mini series
- CE · RoHS documentation supplied per shipment
