YD-2567 Mini LED Aluminium Profile — Wall-Grazing · 30° Beam
Brand Name: OFLY
Certification: CE, ROHS
Delivery Time: 5-7 Days
Warranty: 3-5years
YD-2567 Mini LED Aluminium Profile — Wall-Grazing · 30° Beam
9 × 9 mm square mini LED aluminium profile in 6063-T5 with a 30° angled internal channel for wall-grazing and indirect lighting applications. Same triple optical configuration used across the entire Mini series — PC diffuser, reflector cup + lens, or reflector cup + black cover (all 100 mm modular). Designed for ≤ 4.7 mm flexible COB tape or CSP1208 rigid LED strip. Surface-mounted into a routed slot using metal spring clips. Cut to length, no MOQ, CE & RoHS certified.
- Model
- YD-2567
- Profile size
- 9 × 9 mm (square)
- Internal channel

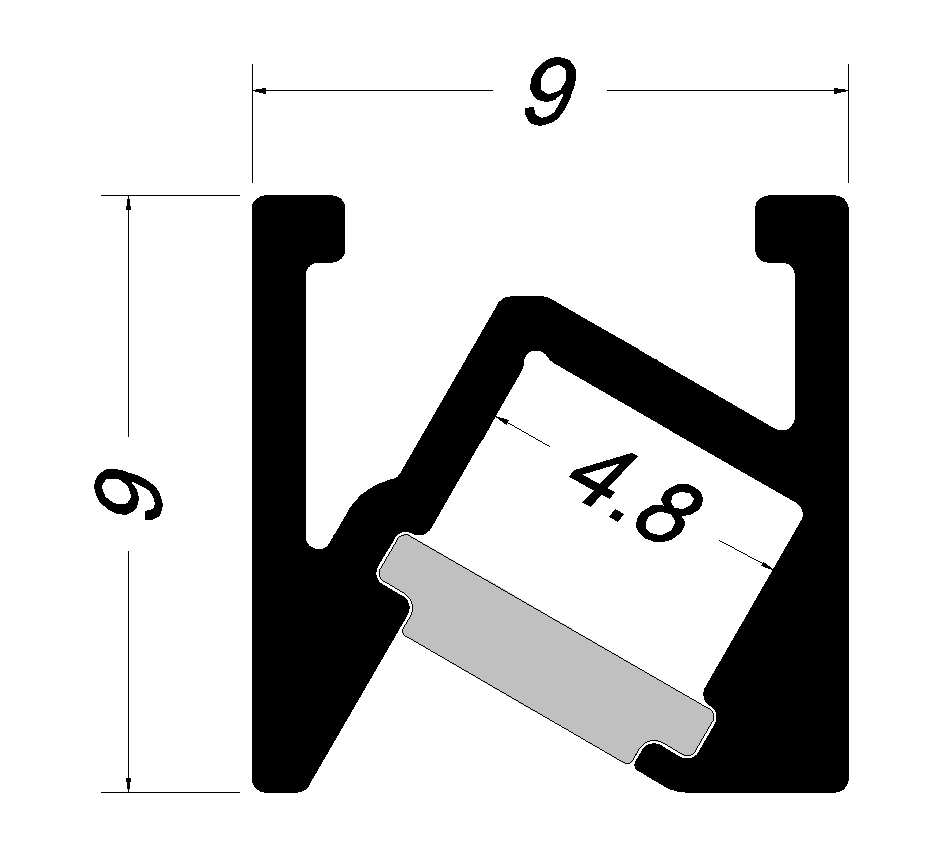

- 4.8 mm · 30° angled
- For LED tape
- ≤ 4.7 mm flexible COB
- Rigid strip
- CSP1208 · 100 mm · 14 beads
- Length
- cut to size, max 4 m
- Material
- 6063-T5 aluminium
- Mount
- Surface slot + metal clips
- MOQ
- 1 piece (no MOQ)
Square 9 × 9 mm body with a 30° angled beam — for wall-grazing and indirect lighting
The YD-2567 is the wall-grazing option in the Mini series. The aluminium body is a 9 × 9 mm square — slightly larger than the 7 × 8 mm 2565 / 2566 body and the 8.6 × 7.3 mm 2575 body — but the defining feature is the internal LED channel. Instead of running straight along the bottom of the profile (as in 2565 / 2566 / 2575), the channel is rotated 30° from vertical. The LED strip sits at this 30° angle, so the light beam shoots diagonally across the adjacent surface instead of straight out.
That single geometry change unlocks wall-grazing effects: mount the YD-2567 in a routed slot along the top edge of a feature wall, under a shelf, inside a cove, or along the nosing of a stair tread, and the beam washes the surface below or beside it. The same 9 × 9 mm body can also be installed flat if a 30° asymmetry is not required — the profile is symmetric in plan, so the orientation can be flipped on-site.
Fixing is by metal Z-spring clips (with screw holes) that mount into a 9 × 9 mm routed slot in the mounting surface. The profile drops onto the clips and is held in place — no adhesive, no springs in the profile body itself. The clips are screwed first, the profile is snapped in second, which makes service and LED replacement straightforward.
The YD-2567 uses the same triple optical configuration as the YD-2565 / YD-2566 / YD-2575 — PC diffuser, reflector cup + lens, or reflector cup + black cover. All three optical modes are 100 mm modular, so a single accessory range covers the entire Mini series, and the same dual LED source (flexible COB tape or CSP1208 rigid strip) applies.
- 9 × 9 mm square body — slightly larger than other Mini series profiles, accommodates the 30° angled channel and the metal clip mounting hardware.
- 30° angled internal channel — light beam shoots diagonally across the adjacent surface for wall-grazing and indirect lighting.
- Metal Z-spring clip mount — clip screws into the routed slot first, profile drops onto clip. No adhesive. Service-friendly.
- Triple optical configuration — PC diffuser / reflector cup + lens / reflector cup + black cover. 100 mm modular accessories.
- Dual LED compatibility — flexible COB / SMD tape for the PC diffuser; CSP1208 rigid strip for the cup / lens / cover.
- Cut to length, no MOQ — supplied in 2 m stock, cut to size on request.
Two LED modes — pick the right one before ordering
The YD-2567 supports two LED sources that determine which optical accessory you can use. Flexible COB tape and CSP1208 rigid strip cannot be mixed on the same cup. Pick one mode before you spec accessories.
Flexible COB / SMD tape
- LED tape ≤ 4.7 mm wide (3 mm / 4 mm COB recommended)
- PC diffuser — Clear, Frosted or Opal
- Soft dot-free line, low cost
- Not compatible with reflector cup / lens / black cover
CSP1208 rigid LED strip
- CSP1208 chip · 100 mm length · 14 beads / segment
- Square PC electrode, electroplated finish
- Pair with optical lens (narrow accent) or black PC cover (deep anti-glare UGR < 19)
- 100 mm modular — 10 segments per metre
Ordering tip: if you spec accessories first, lock in the LED source at the same time. Quote the rigid strip count (× 100 mm segments) together with the cup + lens/cover count to avoid mismatched shipments.
Three optical configurations from one profile

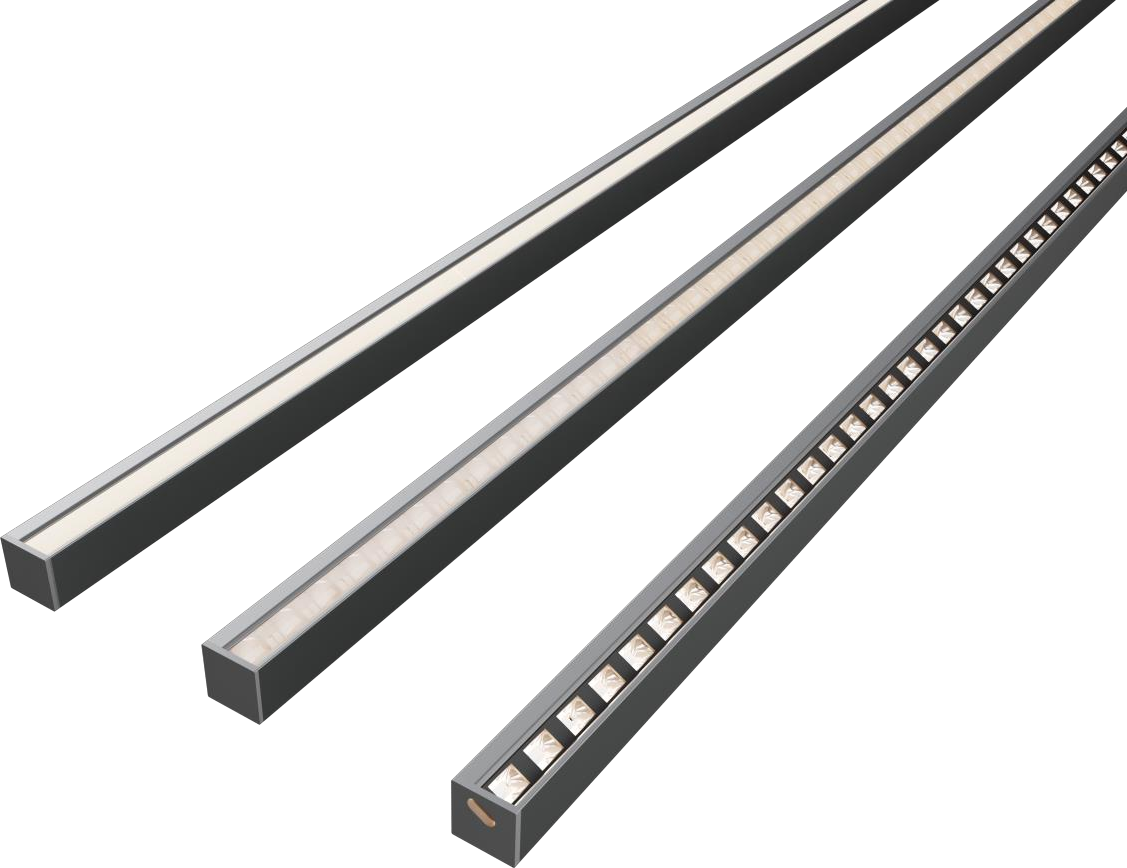

Same aluminium body, three optical outcomes. From soft diffuse line (Mode A) to premium anti-glare (Mode B). The YD-2567 shares this triple optical configuration with the YD-2565, YD-2566 and YD-2575 — so the same accessory SKUs cover the whole Mini series.
The 30° beam angle — wall-grazing, cove and indirect
The internal LED channel is rotated 30° from vertical. The light beam exits the diffuser (or cup / lens / cover) at this 30° angle relative to the mounting surface, so it shoots diagonally across the adjacent wall, ceiling, or stair tread instead of straight down. This is the geometry behind professional wall-grazing effects in architectural lighting.
Surface installation — metal clips into a 9 × 9 mm routed slot
Route a 9 mm wide × 9 mm deep slot in the mounting surface using a wood router, trimmer or CNC mill. Fix the metal Z-spring clips into the slot first (one screw per clip). Drop the YD-2567 profile onto the clips — the profile snaps in and is held by the metal spring action. No adhesive, no special tools required for removal.
Per-metre parts list
The YD-2567 ships with the metal mounting hardware needed for surface-slot installation. The metal Z-spring clips fix into the routed slot first; the end caps seal the channel ends. The reflector cup, lens and black cover accessories are shared with YD-2565, YD-2566 and YD-2575.

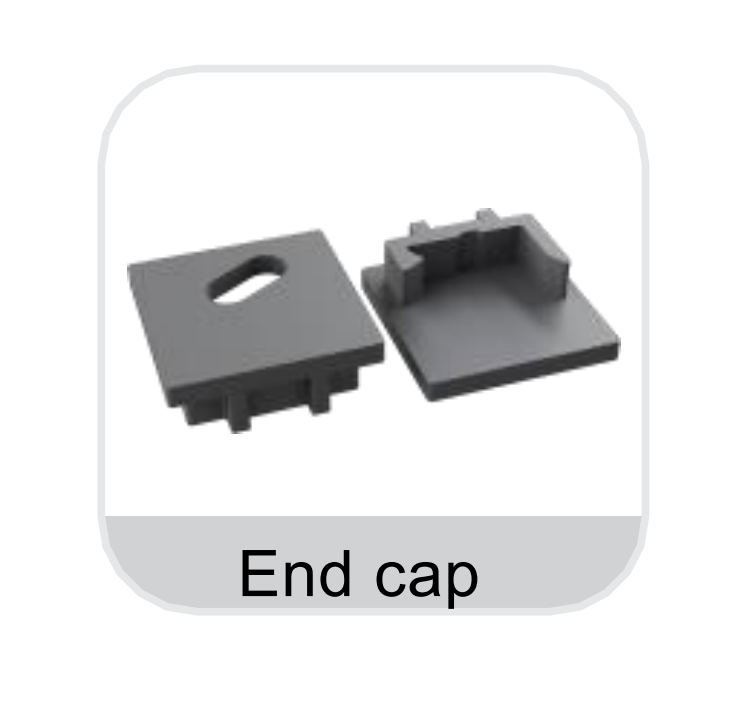

Per-metre parts list: 2 × metal Z-spring clips (with screw holes) · 2 × end caps (one with cable hole, one closed) · reflector cups / lenses / covers quote separately, per 100 mm module (same SKUs as the rest of the Mini series). For a 1 m continuous anti-glare line: 10 × cup + 10 × lens/cover + 10 × CSP1208 strip.
Frequently asked questions
What LED source does the YD-2567 accept?
Two distinct modes: (a) flexible COB / SMD tape up to 4.7 mm wide for the standard PC diffuser (Clear / Frosted / Opal); (b) CSP1208 rigid LED strip, 100 mm length, 14 beads per segment, for the reflector-cup / lens / black-cover options. The two modes cannot be mixed on the same cup — flexible strip does not fit the cup/lens/cover accessories.
What is the 30° beam angle used for?
The internal LED channel is rotated 30° from vertical, so the light beam shoots diagonally across the adjacent surface instead of straight down. This is the wall-grazing geometry: mount the YD-2567 in a routed slot along the top edge of a wall, under a shelf, or inside a cove, and the beam washes the surface below or beside it — perfect for indirect lighting on feature walls, ceilings, stair treads, display case back panels and architectural reveals. The same 9 × 9 mm body can also be installed flat if the 30° asymmetry is not required for the application.
How do I choose between YD-2565, YD-2566, YD-2567 and YD-2575?
YD-2565 is the entry-level mini profile — 7 × 8 mm, surface mounting or magnetic mounting, fastest install. YD-2566 is the recessed variant of YD-2565 — same 7 × 8 mm body but with a 9 mm top flange, designed to drop into a routed slot for a fully flush, invisible-from-the-side look. YD-2567 is the wall-grazing option — 9 × 9 mm square body with a 30° angled internal channel, surface-mounted with metal clips; beam shoots diagonally across the adjacent surface for indirect lighting effects. YD-2575 is the larger advanced option — 8.6 × 7.3 mm with three mounting modes (surface / wall-lamp / 180° adjustable rotation). All four share the same triple optical configuration (PC diffuser / reflector cup + lens / reflector cup + black cover) and 100 mm modular accessories.
What slot dimensions does the YD-2567 require?
A 9 mm wide × 9 mm deep routed slot. The metal Z-spring clips fix into the slot first (one screw per clip), then the profile drops onto the clips. Slot dimensions are not critical to within ±0.3 mm — the clips accommodate normal routing tolerance. Standard router, laminate trimmer or CNC mill compatible.
Minimum cut length and tolerance?
Cut to any length; standard tolerance ±0.5 mm. Tighter tolerances available on request.
What is included in the accessories kit?
Two metal Z-spring clips (with screw holes) and two end caps (one with cable hole, one closed) per metre of profile. The metal clips fix into the routed slot first; the profile then drops into the clips. The reflector cup, lens and black cover are quoted separately, priced per 100 mm module — same SKUs as YD-2565, YD-2566 and YD-2575.
Get a quote, datasheet or sample
Tell us your project length, mounting surface material (MDF / plywood / stone / plasterboard), LED source (flexible COB or CSP1208 rigid), and which optical configuration (PC diffuser / lens+cup / black cover+cup). We will reply with a per-100 mm accessory breakdown and a sample lead time within one working day.
- Cut-to-length service · ±0.5 mm standard tolerance
- Metal-clip surface mounting into a 9 × 9 mm routed slot — no adhesive, profile removable for service
- Same 100 mm optical SKUs as YD-2565, YD-2566 and YD-2575 — single accessory range across the Mini series
- CE · RoHS documentation supplied per shipment
