YD-2568 Mini LED Aluminium Profile — Recessed Wall-Grazing · 30° Beam
Brand Name: OFLY
Certification: CE, ROHS
Delivery Time: 5-7 Days
Warranty: 3-5years
YD-2568 Mini LED Aluminium Profile — Recessed Wall-Grazing · 30° Beam
9 × 8 mm mini LED aluminium profile in 6063-T5 with an 11 mm bottom flange and a 30° angled internal channel for recessed flush-mount wall-grazing installations. Same triple optical configuration used across the entire Mini series — PC diffuser, reflector cup + lens, or reflector cup + black cover (all 100 mm modular). Designed for ≤ 4.7 mm flexible COB tape or CSP1208 rigid LED strip. Drops into an 11 × 8 mm routed slot; flange sits flush with the mounting surface. Cut to length, no MOQ, CE & RoHS certified.
- Model
- YD-2568
- Profile size
- 9 × 8 mm body + 11 mm flange
- Internal channel
- 4.8 mm · 30° angled
- For LED tape
- ≤ 4.7 mm flexible COB
- Rigid strip
- CSP1208 · 100 mm · 14 beads
- Length
- cut to size, max 4 m
- Material
- 6063-T5 aluminium
- Mount
- Recessed flush (11 × 8 mm slot)
- MOQ
- 1 piece (no MOQ)
Recessed wall-grazing — flush profile, 30° angled beam

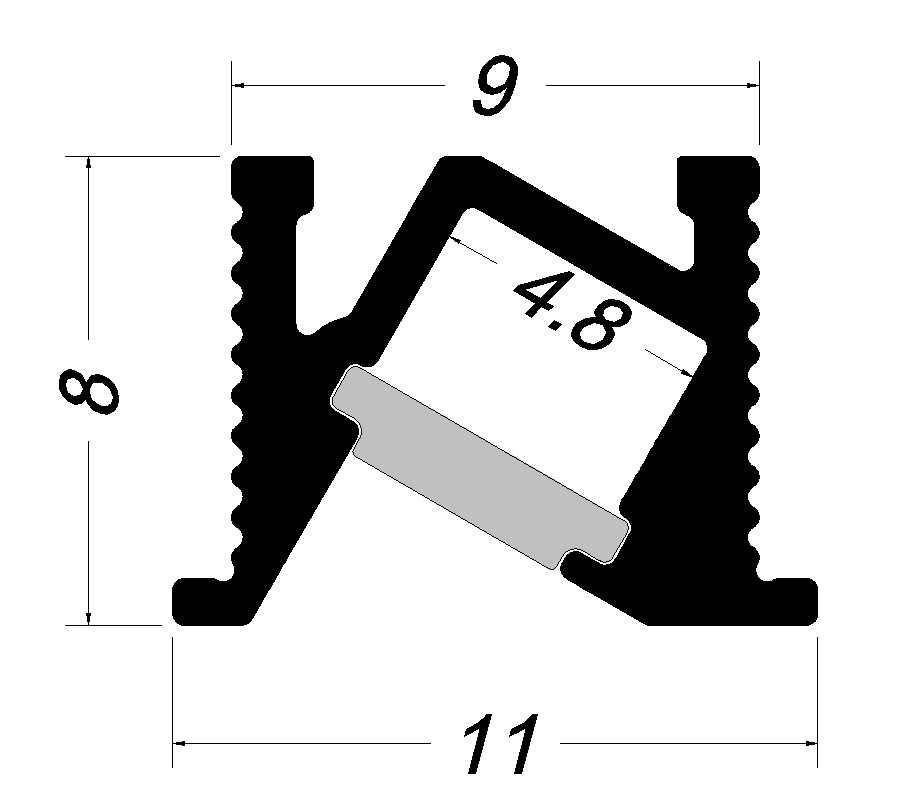

The YD-2568 is the recessed variant of the YD-2567. Both share the same internal geometry — a 4.8 mm LED channel rotated 30° from vertical so the light beam shoots diagonally across the adjacent surface — but YD-2568 adds an 11 mm bottom flange that lets the profile drop into a routed slot and sit flush with the mounting surface. From the room side, only the PC diffuser line is visible; the aluminium body is completely hidden inside the slot.
Where YD-2567 hangs below the mounting surface on metal clips (visible-from-the-side installation), YD-2568 is invisible from every angle except straight on. The slot is 11 mm wide × 8 mm deep, matching the 11 mm flange footprint and the 8 mm body depth. The flange sits flush against the surface on both sides; optional metal Z-spring clips can be added inside the slot for ceiling installations or high-vibration environments.
The 30° angled internal channel is the defining feature. Mount the YD-2568 in a routed slot along the top edge of a feature wall, under a shelf, inside a cove, or along the nosing of a stair tread, and the beam washes the surface below or beside it. This is the same wall-grazing geometry as YD-2567 — but with the profile body recessed into the slot instead of hanging below.
The YD-2568 uses the same triple optical configuration as the YD-2565 / YD-2566 / YD-2567 / YD-2575 — PC diffuser, reflector cup + lens, or reflector cup + black cover. All three optical modes are 100 mm modular, so a single accessory range covers the entire Mini series, and the same dual LED source (flexible COB tape or CSP1208 rigid strip) applies.
- 9 × 8 mm body + 11 mm flange — recessed flush mount; only the diffuser line is visible from the room side.
- 30° angled internal channel — light beam shoots diagonally across the adjacent surface for wall-grazing and indirect lighting.
- Optional metal Z-spring clips — added retention for ceiling and high-vibration installations. Standard retention is by the slot friction fit alone.
- Triple optical configuration — PC diffuser / reflector cup + lens / reflector cup + black cover. 100 mm modular accessories.
- Dual LED compatibility — flexible COB / SMD tape for the PC diffuser; CSP1208 rigid strip for the cup / lens / cover.
- Cut to length, no MOQ — supplied in 2 m stock, cut to size on request.
Two LED modes — pick the right one before ordering
The YD-2568 supports two LED sources that determine which optical accessory you can use. Flexible COB tape and CSP1208 rigid strip cannot be mixed on the same cup. Pick one mode before you spec accessories.
Flexible COB / SMD tape
- LED tape ≤ 4.7 mm wide (3 mm / 4 mm COB recommended)
- PC diffuser — Clear, Frosted or Opal
- Soft dot-free line, low cost
- Not compatible with reflector cup / lens / black cover
CSP1208 rigid LED strip
- CSP1208 chip · 100 mm length · 14 beads / segment
- Square PC electrode, electroplated finish
- Pair with optical lens (narrow accent) or black PC cover (deep anti-glare UGR < 19)
- 100 mm modular — 10 segments per metre
Ordering tip: if you spec accessories first, lock in the LED source at the same time. Quote the rigid strip count (× 100 mm segments) together with the cup + lens/cover count to avoid mismatched shipments.

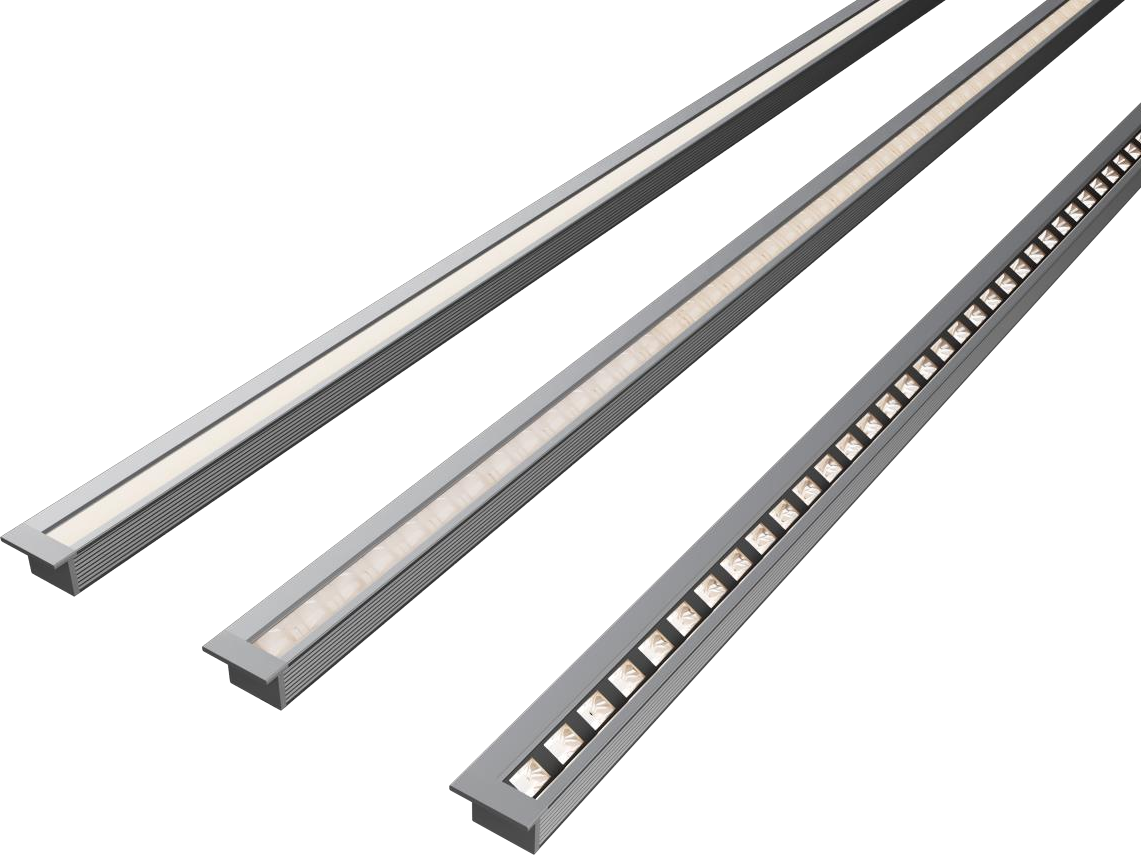

Three optical configurations from one profile
Same aluminium body, three optical outcomes. From soft diffuse line (Mode A) to premium anti-glare (Mode B). The YD-2568 shares this triple optical configuration with the YD-2565, YD-2566, YD-2567 and YD-2575 — so the same accessory SKUs cover the whole Mini series.
The 30° beam angle — wall-grazing, cove and indirect
The internal LED channel is rotated 30° from vertical. The light beam exits the diffuser (or cup / lens / cover) at this 30° angle relative to the mounting surface, so it shoots diagonally across the adjacent wall, ceiling, or stair tread instead of straight down. This is the geometry behind professional wall-grazing effects in architectural lighting — and because YD-2568 is recessed flush, the only visible part of the fixture is the diffuser line at the slot opening.
Recessed installation — 11 × 8 mm routed slot
Route an 11 mm wide × 8 mm deep slot in the mounting surface using a wood router, laminate trimmer or CNC mill. The YD-2568 drops into the slot — the 11 mm bottom flange sits flush against the surface on both sides, and the serrated side wings provide friction grip inside the slot. Optional metal Z-spring clips can be added for ceiling installations or any application where vibration or accidental contact might displace the profile.
Per-metre parts list

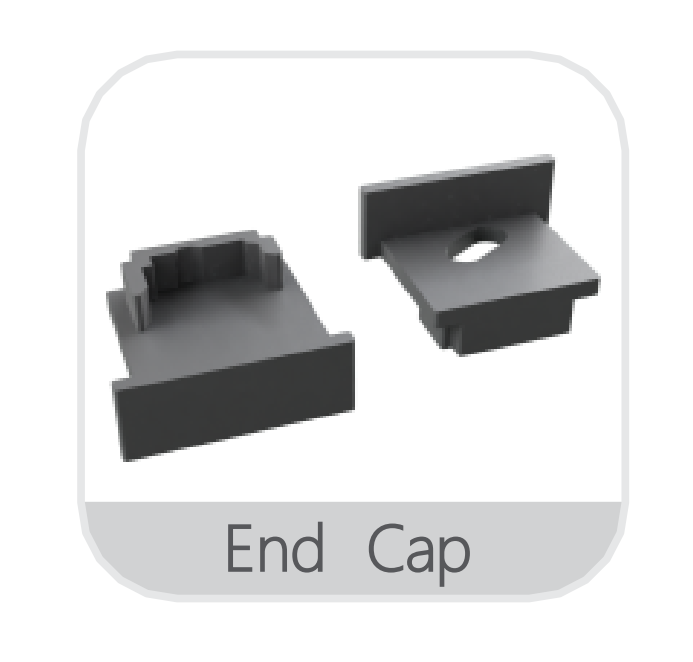

The YD-2568 ships ready for recessed flush mounting. End caps seal the channel ends. The reflector cup, lens and black cover accessories are shared with the rest of the Mini series.
Per-metre parts list: 2 × end caps (one with cable hole, one closed) · metal Z-spring clips optional, quoted separately if required · reflector cups / lenses / covers quote separately, per 100 mm module (same SKUs as the rest of the Mini series). For a 1 m continuous anti-glare line: 10 × cup + 10 × lens/cover + 10 × CSP1208 strip.
Frequently asked questions
What LED source does the YD-2568 accept?
Two distinct modes: (a) flexible COB / SMD tape up to 4.7 mm wide for the standard PC diffuser (Clear / Frosted / Opal); (b) CSP1208 rigid LED strip, 100 mm length, 14 beads per segment, for the reflector-cup / lens / black-cover options. The two modes cannot be mixed on the same cup — flexible strip does not fit the cup/lens/cover accessories.
What is the 30° beam angle used for?
The internal LED channel is rotated 30° from vertical, so the light beam shoots diagonally across the adjacent surface instead of straight down. This is the wall-grazing geometry: install the YD-2568 in a routed slot along the top edge of a wall, under a shelf, or inside a cove, and the beam washes the surface below or beside it — perfect for indirect lighting on feature walls, ceilings, stair treads, display case back panels and architectural reveals. Because YD-2568 is recessed flush, only the diffuser line is visible from the room side — the asymmetric beam is the whole point of the profile.
How do I choose between YD-2565, YD-2566, YD-2567, YD-2568 and YD-2575?
YD-2565 is the entry-level mini profile — 7 × 8 mm, surface mounting or magnetic mounting, fastest install. YD-2566 is the recessed variant of YD-2565 — same 7 × 8 mm body but with a 9 mm top flange, designed to drop into a routed slot for a fully flush, invisible-from-the-side look (straight down beam). YD-2567 is the wall-grazing surface-mount option — 9 × 9 mm square body with a 30° angled internal channel; the profile hangs below the mounting surface, held by metal clips. YD-2568 is the recessed wall-grazing option — 9 × 8 mm body with an 11 mm bottom flange, designed to drop into a routed slot for a fully flush look with the 30° angled beam. YD-2575 is the larger advanced option — 8.6 × 7.3 mm with three mounting modes (surface / wall-lamp / 180° adjustable rotation). All five share the same triple optical configuration (PC diffuser / reflector cup + lens / reflector cup + black cover) and 100 mm modular accessories.
What slot dimensions does the YD-2568 require?
An 11 mm wide × 8 mm deep routed slot. The slot width matches the 11 mm bottom flange footprint, so the flange sits flush against the mounting surface on both sides. Slot depth matches the 8 mm body height. Standard router, laminate trimmer or CNC mill compatible. Optional metal Z-spring clips fix into the slot first (one screw per clip) for added retention, then the profile drops onto the clips.
Minimum cut length and tolerance?
Cut to any length; standard tolerance ±0.5 mm. Tighter tolerances available on request.
What is included in the accessories kit?
Two end caps (one with cable hole for power feed-through, one closed) per metre of profile. Optional metal Z-spring clips (with screw holes) are supplied on request — recommended for ceiling installations and any application where vibration or accidental contact might displace the profile. The reflector cup, lens and black cover are quoted separately, priced per 100 mm module — same SKUs as YD-2565, YD-2566, YD-2567 and YD-2575.
Get a quote, datasheet or sample
Tell us your project length, mounting surface material (MDF / plywood / stone / plasterboard), LED source (flexible COB or CSP1208 rigid), and which optical configuration (PC diffuser / lens+cup / black cover+cup). We will reply with a per-100 mm accessory breakdown and a sample lead time within one working day.
- Cut-to-length service · ±0.5 mm standard tolerance
- Recessed flush mounting into an 11 × 8 mm routed slot — only the diffuser line is visible from the room side
- Same 100 mm optical SKUs as YD-2565, YD-2566, YD-2567 and YD-2575 — single accessory range across the Mini series
- CE · RoHS documentation supplied per shipment
