YD-2569 Mini LED Aluminium Profile — Recessed Shelf Light · Anti-Glare Baffle
Brand Name: OFLY
Certification: CE, ROHS
Delivery Time: 5-7 Days
Warranty: 3-5years
YD-2569 Mini LED Aluminium Profile — Recessed Shelf Light · Anti-Glare Baffle

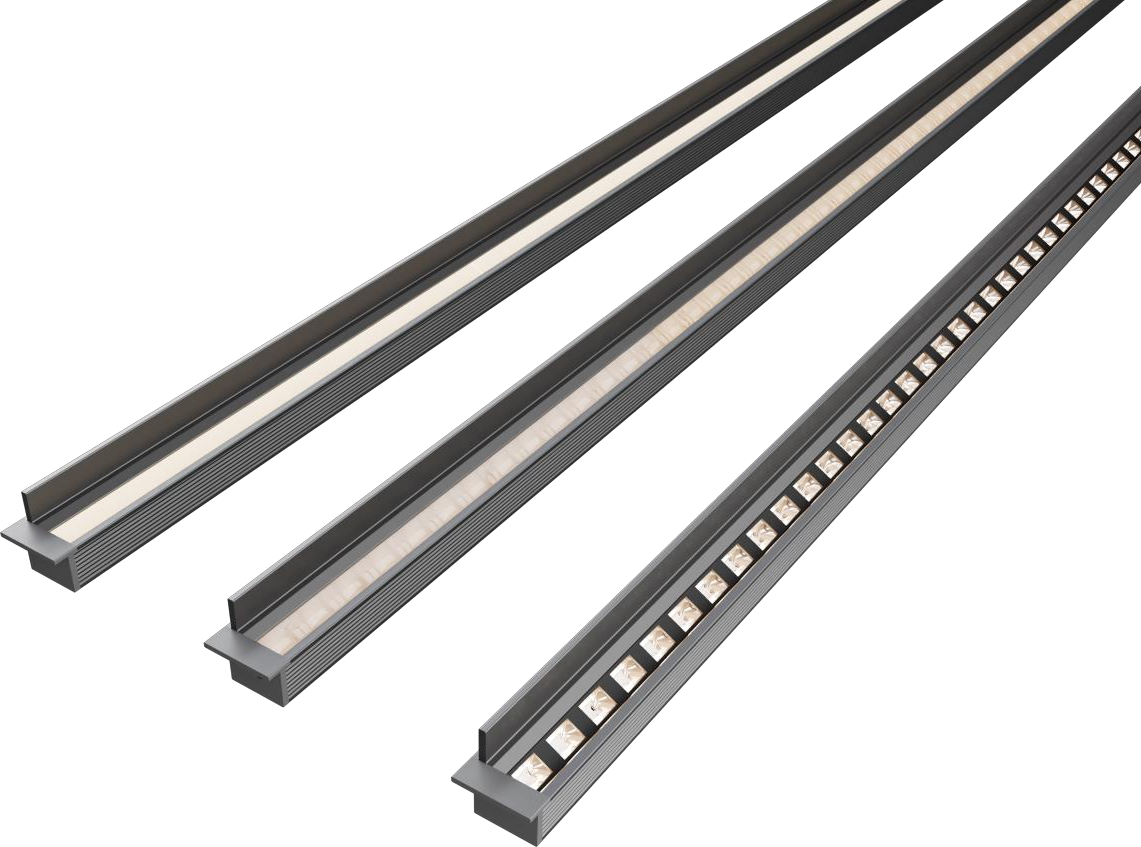

9 × 8 mm mini LED aluminium profile in 6063-T5 with an 11 mm bottom flange and a 13 mm anti-glare baffle for recessed flush-mount under-shelf lighting. The 13 mm baffle extends below the flange to shield the LED from direct view, producing a 'see light, not see the lamp' effect — the LED is mechanically hidden behind the baffle, and only the grazing light wash is visible from below. Same triple optical configuration used across the entire Mini series — PC diffuser, reflector cup + lens, or reflector cup + black cover (all 100 mm modular). Designed for ≤ 4.7 mm flexible COB tape or CSP1208 rigid LED strip. Drops into a 9 × 13 mm routed slot; flange sits flush with the mounting surface. Cut to length, no MOQ, CE & RoHS certified.
- Model
- YD-2569
- Profile size
- 9 × 8 mm body + 11 mm flange + 13 mm baffle
- Internal channel
- 4.8 mm · 30° angled
- For LED tape
- ≤ 4.7 mm flexible COB
- Rigid strip
- CSP1208 · 100 mm · 14 beads
- Length
- cut to size, max 4 m
- Material
- 6063-T5 aluminium
- Mount
- Recessed flush (9 × 13 mm slot)
- MOQ
- 1 piece (no MOQ)
Recessed shelf light — see light, not see the lamp
The YD-2569 is the recessed shelf-light variant of the Mini series. It shares the same 4.8 mm LED channel rotated 30° from vertical as the YD-2567 and YD-2568 — but the body geometry is fundamentally different: an 11 mm bottom flange plus a 13 mm anti-glare baffle that drops into a 9 × 13 mm routed slot. The baffle is the defining feature: a 5 mm aluminium wall that extends below the 11 mm flange on the viewing side, mechanically shielding the LED from direct line of sight. The LED is hidden behind the baffle wall — only the grazing beam washing the back panel of the shelf, the cove wall, or the stair riser is visible.
This is the classic"see light, not see the lamp"design. Where a regular recessed profile like the YD-2566 shows a clear diffuser line or a thin LED strip through the diffuser, the YD-2569 with its baffle shows nothing — just a soft, pooled wash on the adjacent surface. The viewer standing under the shelf cannot tell where the light is coming from. This is the same dark-light / anti-glare principle used in museums, galleries, high-end kitchens, and architectural showcases (UGR < 19 territory).
The 30° angled internal channel is the same geometry as YD-2567 and YD-2568. With the baffle in place, the beam is forced to shoot diagonally away from the viewer — typically toward the back of the shelf, the back wall of a cove, or the front face of a stair riser. The combination of the 30° beam + the 13 mm baffle is what makes the effect work: the channel rotation alone wouldn't hide the LED, and the baffle alone wouldn't direct the beam. Together, they produce a clean, indirect wash with zero visible point source.
The YD-2569 uses the same triple optical configuration as the YD-2565 / YD-2566 / YD-2567 / YD-2568 / YD-2575 — PC diffuser, reflector cup + lens, or reflector cup + black cover. All three optical modes are 100 mm modular, so a single accessory range covers the entire Mini series, and the same dual LED source (flexible COB tape or CSP1208 rigid strip) applies. The PC diffuser mode is the most common choice for under-shelf, while the reflector cup + black cover mode gives the deepest anti-glare reading for gallery applications.
- 9 × 8 mm body + 11 mm flange + 13 mm anti-glare baffle — recessed flush mount; the baffle is fully inside the slot, only the diffuser line is visible from below.
- See light, not see the lamp — the 5 mm baffle wall extends below the flange, mechanically hiding the LED from direct view.
- 30° angled internal channel — beam shoots diagonally away from the viewer, completing the dark-light effect.
- Triple optical configuration — PC diffuser / reflector cup + lens / reflector cup + black cover. 100 mm modular accessories.
- Dual LED compatibility — flexible COB / SMD tape for the PC diffuser; CSP1208 rigid strip for the cup / lens / cover.
- Cut to length, no MOQ — supplied in 2 m stock, cut to size on request.
Two LED modes — pick the right one before ordering
The YD-2569 supports two LED sources that determine which optical accessory you can use. Flexible COB tape and CSP1208 rigid strip cannot be mixed on the same cup. Pick one mode before you spec accessories.
Flexible COB / SMD tape
- LED tape ≤ 4.7 mm wide (3 mm / 4 mm COB recommended)
- PC diffuser — Clear, Frosted or Opal
- Soft dot-free line, low cost
- Not compatible with reflector cup / lens / black cover
CSP1208 rigid LED strip
- CSP1208 chip · 100 mm length · 14 beads / segment
- Square PC electrode, electroplated finish
- Pair with optical lens (narrow accent) or black PC cover (deep anti-glare UGR < 19)
- 100 mm modular — 10 segments per metre
Ordering tip: for the deepest"see light, not see the lamp"effect, choose Mode B (rigid strip + reflector cup + black PC cover). The black cover matches the baffle's anti-glare logic and produces the lowest UGR reading. If you only need a soft line, Mode A (flexible COB + Frosted PC diffuser) is the lower-cost option.
Three optical configurations from one profile
Same aluminium body, three optical outcomes. From soft diffuse line (Mode A) to premium anti-glare (Mode B). The YD-2569 shares this triple optical configuration with the YD-2565, YD-2566, YD-2567, YD-2568 and YD-2575 — so the same accessory SKUs cover the whole Mini series.
The 13 mm anti-glare baffle — see light, not see the lamp
The 13 mm anti-glare baffle is the defining feature of the YD-2569. Most recessed LED profiles show a clear diffuser line or a thin LED strip — viewed from below, the LED is visible. The YD-2569 is different: a 5 mm aluminium wall extends below the 11 mm flange on the viewing side, mechanically shielding the LED from direct line of sight. The LED is hidden behind the baffle wall. Only the grazing beam washing the back panel of the shelf, the cove wall, or the stair riser is visible. From below, the fixture appears as a clean slot with no visible point source.
Recessed installation — 9 × 13 mm routed slot
Route a 9 mm wide × 13 mm deep slot in the underside of the shelf (or stair tread, or cove soffit) using a wood router, laminate trimmer or CNC mill. The YD-2569 drops into the slot — the 11 mm bottom flange sits flush against the underside on both sides, covering the slot edge with 1 mm trim on each side. The 13 mm anti-glare baffle is fully inside the slot, hiding the LED from below. Optional metal Z-spring clips can be added for ceiling installations or any application where vibration or accidental contact might displace the profile.
Per-metre parts list
The YD-2569 ships ready for recessed flush mounting. End caps seal the channel ends. The reflector cup, lens and black cover accessories are shared with the rest of the Mini series.
Per-metre parts list: 2 × end caps (one with cable hole, one closed) · metal spring clips optional, quoted separately if required · reflector cups / lenses / covers quote separately, per 100 mm module (same SKUs as the rest of the Mini series). For a 1 m continuous anti-glare under-shelf line: 10 × cup + 10 × black cover + 10 × CSP1208 strip.
Frequently asked questions
What LED source does the YD-2569 accept?
Two distinct modes: (a) flexible COB / SMD tape up to 4.7 mm wide for the standard PC diffuser (Clear / Frosted / Opal); (b) CSP1208 rigid LED strip, 100 mm length, 14 beads per segment, for the reflector-cup / lens / black-cover options. The two modes cannot be mixed on the same cup — flexible strip does not fit the cup/lens/cover accessories.
How does the baffle achieve 'see light, not see the lamp'?
The 13 mm anti-glare baffle is a 5 mm aluminium wall that extends below the 11 mm flange on the viewing side of the profile. It sits in the routed slot together with the body, mechanically shielding the LED from direct line of sight when the fixture is viewed from below. The LED itself is hidden behind the baffle — only the beam grazing the back panel of the shelf, the cove, or the stair riser is visible. The 30° asymmetric beam angle completes the effect: the beam shoots diagonally away from the viewer, so the result is a soft, pooled wash on the back surface with no visible point source. The baffle is the key feature; without it, the LED would be visible as a bright dot or strip through the diffuser.
How do I choose between YD-2565, YD-2566, YD-2567, YD-2568, YD-2569 and YD-2575?
YD-2565 is the entry-level mini profile — 7 × 8 mm, surface mounting or magnetic mounting, fastest install. YD-2566 is the recessed variant of YD-2565 — same 7 × 8 mm body but with a 9 mm top flange, designed to drop into a routed slot for a fully flush look (straight down beam, no baffle). YD-2567 is the wall-grazing surface-mount option — 9 × 9 mm square body with a 30° angled internal channel; the profile hangs below the mounting surface, held by metal clips. YD-2568 is the recessed wall-grazing option for ceilings and coves — 9 × 8 mm body with an 11 mm bottom flange, designed to drop into a routed slot for a fully flush look with the 30° angled beam washing the upper wall. YD-2569 is the recessed shelf-light option with anti-glare baffle — 9 × 8 mm body with an 11 mm flange and a 13 mm baffle that mechanically hides the LED ('see light, not see the lamp'), designed for under-shelf, in-step or in-cove installation where the LED must be shielded from direct view. YD-2575 is the larger advanced option — 8.6 × 7.3 mm with three mounting modes (surface / wall-lamp / 180° adjustable rotation). All six share the same triple optical configuration (PC diffuser / reflector cup + lens / reflector cup + black cover) and 100 mm modular accessories.
What slot dimensions does the YD-2569 require?
A 9 mm wide × 13 mm deep routed slot. The slot width matches the 9 mm body width; the slot depth matches the 13 mm baffle side (the 8 mm body + 5 mm baffle extension below the flange). The 11 mm flange sits flush against the mounting surface on both sides, covering the slot edge with 1 mm trim. Standard wood router, laminate trimmer or CNC mill compatible. Optional metal Z-spring clips fix into the slot first (one screw per clip) for added retention, then the profile drops onto the clips — recommended for ceiling installations or any application where vibration or accidental contact might displace the profile.
Minimum cut length and tolerance?
Cut to any length; standard tolerance ±0.5 mm. Tighter tolerances available on request.
What is included in the accessories kit?

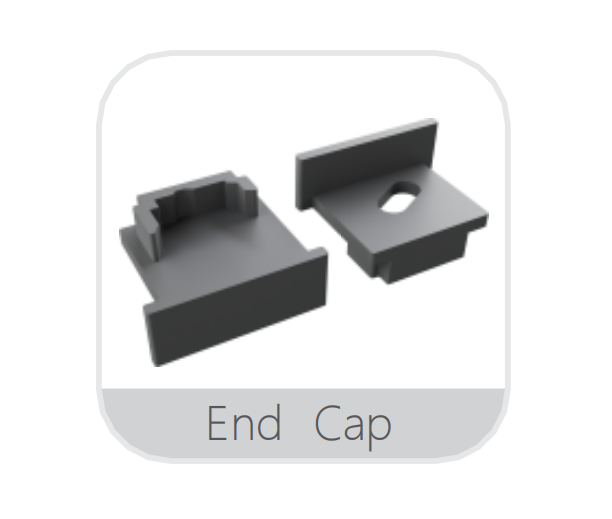

Two end caps (one with cable hole for power feed-through, one closed) per metre of profile. Optional metal Z-spring clips (with screw holes) are supplied on request — recommended for ceiling installations and any application where vibration or accidental contact might displace the profile. The reflector cup, lens and black cover are quoted separately, priced per 100 mm module — same SKUs as YD-2565, YD-2566, YD-2567, YD-2568 and YD-2575.
Get a quote, datasheet or sample
Tell us your project length, mounting surface (shelf underside / stair tread / cove soffit), LED source (flexible COB or CSP1208 rigid), and which optical configuration (PC diffuser / lens+cup / black cover+cup). We will reply with a per-100 mm accessory breakdown and a sample lead time within one working day.
- Cut-to-length service · ±0.5 mm standard tolerance
- Recessed flush mounting into a 9 × 13 mm routed slot — the 13 mm anti-glare baffle hides the LED, only the soft wash is visible from below
- Same 100 mm optical SKUs as YD-2565, YD-2566, YD-2567, YD-2568 and YD-2575 — single accessory range across the Mini series
- CE · RoHS documentation supplied per shipment
