YD-2565 Mini LED Aluminium Profile — Surface & Magnetic Mount

YD-2565
Place of Origin: Shenzhen, China
Brand Name: OFLY
Certification: CE, ROHS
Delivery Time: 5-7 Days
Warranty: 3-5years
Quantity:
Contact Now

YD-2565 Mini LED Aluminium Profile — Surface & Magnetic Mount

Compact 7 × 8 mm mini LED aluminium profile in 6063-T5 with a built-in N/S neodymium magnet strip for tool-free magnetic installation. The same triple optical configuration as Mini series— PC diffuser, reflector cup + lens, or reflector cup + black cover (all 100 mm modular). Designed for ≤ 4.7 mm flexible COB tape or CSP1208 rigid LED strip. Cut to length, no MOQ, CE & RoHS certified.

Mini Series7 × 8 mm≤ 4.7 mm flexible COBCSP1208 rigid strip compatibleBuilt-in N/S magnet stripCE & RoHSSurface / Magnetic mount
YD-2565 mini LED aluminium profile three-state showcase: bare profile, profile with LED strip, profile with reflector cup lens array
Model
YD-2565
Profile size
7 × 8 mm
Internal channel
4.8 mm
For LED tape
≤ 4.7 mm flexible COB
Rigid strip
CSP1208 · 100 mm · 14 beads
Length
cut to size, max 4 m
Material
6063-T5 aluminium
Mount
Surface / Magnetic (built-in)
MOQ
1 piece (no MOQ)

Mini profile with tool-free magnetic mounting

The YD-2565 is the second profile in Ofly's Mini series — a compact 7 × 8 mm aluminium channel designed for installations where speed and reversibility matter as much as the slim visual line. The 4.8 mm internal channel accepts the same narrow LED sources as the YD-2575 — from 3 mm to 4.7 mm wide flexible COB / SMD tape, plus the CSP1208 rigid LED strip used with the 100 mm modular optical accessories.

What sets the YD-2565 apart is the integrated N/S neodymium magnet strip. Housed in a dedicated lower cavity of the aluminium body, the magnet is thermally isolated from the LED channel above — heat from the LED still flows through the aluminium heatsink exactly as in any other profile, so LED lifetime is unaffected. The magnet snaps the profile directly onto any clean ferrous metal surface: steel cabinets, iron beams, tool boards, exhibition stands. No screws, no adhesive, no tools. A single person can mount or remove a 1 m section in seconds, which makes the YD-2565 ideal for rental, exhibition and seasonal display use.

On non-ferrous surfaces (aluminium, plasterboard, MDF), use the supplied plastic clips to fix the profile in surface-mount mode. Both mounting modes share the same profile and the same triple optical configuration — PC diffuser, reflector cup + lens, or reflector cup + black cover.

  • 7 × 8 mm footprint — slimmer than the YD-2575; fits the tightest cabinet and shelf slots.
  • Built-in magnet strip — tool-free installation on any ferrous surface, ~2.5 kg holding force per 100 mm.
  • Same triple optical configuration as YD-2575 — PC diffuser, reflector cup + lens, reflector cup + black cover. 100 mm modular accessories.
  • Dual LED compatibility — flexible COB / SMD tape for the PC diffuser; CSP1208 rigid strip for the cup / lens / cover.
  • Two mounting modes in one profile — magnetic on steel, surface-mount with clips on everything else.
  • Cut to length, no MOQ — supplied in 2 m stock, cut to size on request.

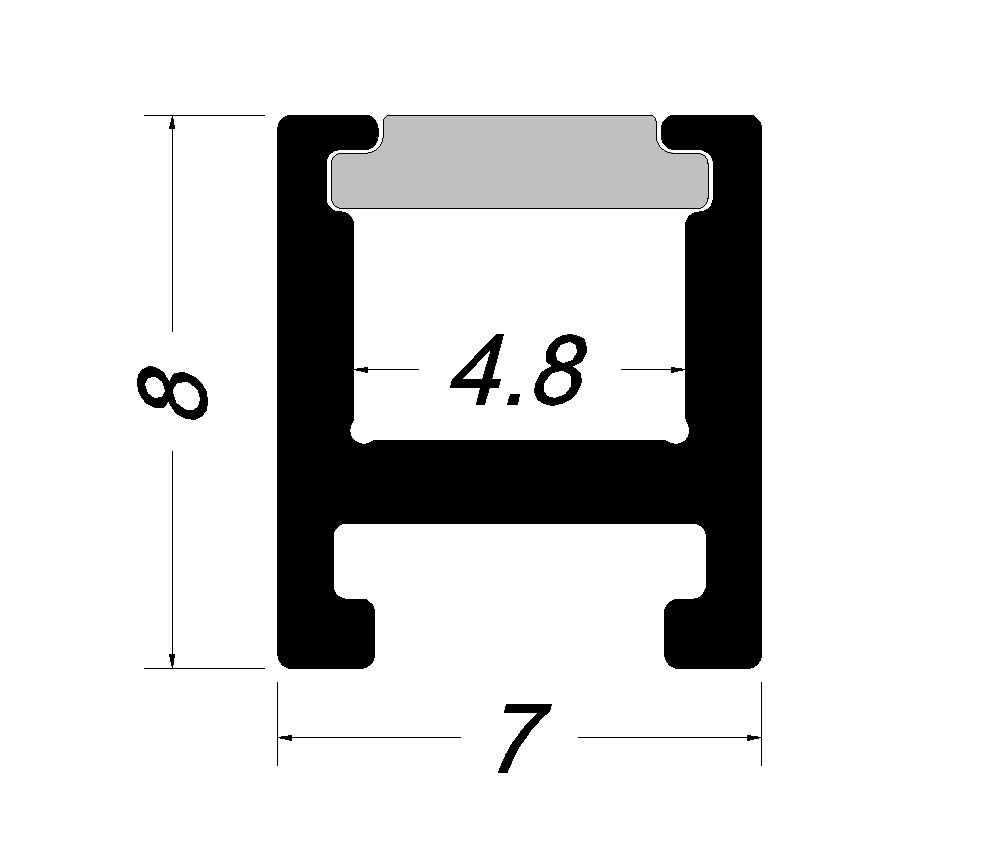

YD-2565 cross-section drawing: 4.8 mm internal channel, 7 mm external width, 8 mm external height, with PC diffuser capping the top of the aluminium profile
Cross-section with PC diffuser capping the LED channel. Internal channel 4.8 mm accepts LED tape ≤ 4.7 mm. Profile exterior 7 × 8 mm. Magnet strip lives in a separate lower cavity, thermally isolated from the LED.

Two LED modes — pick the right one before ordering

The YD-2565 supports two LED sources that determine which optical accessory you can use. Flexible COB tape and CSP1208 rigid strip cannot be mixed on the same cup. Pick one mode before you spec accessories.

Mode A — PC diffuser

Flexible COB / SMD tape

  • LED tape ≤ 4.7 mm wide (3 mm / 4 mm COB recommended)
  • PC diffuser — Clear, Frosted or Opal
  • Soft dot-free line, low cost
  • Not compatible with reflector cup / lens / black cover
Mode B — Reflector cup

CSP1208 rigid LED strip

  • CSP1208 chip · 100 mm length · 14 beads / segment
  • Square PC electrode, electroplated finish
  • Pair with optical lens (narrow accent) or black PC cover (deep anti-glare UGR < 19)
  • 100 mm modular — 10 segments per metre

Ordering tip: if you spec accessories first, lock in the LED source at the same time. Quote the rigid strip count (× 100 mm segments) together with the cup + lens/cover count to avoid mismatched shipments.

Three optical configurations from one profile

Same aluminium body, three optical outcomes. From soft diffuse line (Mode A) to premium anti-glare (Mode B). The YD-2565 shares this triple optical configuration with the larger YD-2575 — so the same accessory SKUs cover both profiles.

YD-2565 three optical configurations side by side: bare channel, with LED strip, with reflector cup lens array
Left to right: bare profile · profile with LED strip · profile with reflector-cup lens array. The same PC diffuser, cup, lens and black-cover modules fit both YD-2565 and YD-2575.

Two mounting modes — surface or magnetic

The YD-2565 ships ready for both modes. On ferrous metal surfaces, the built-in N/S magnet strip does the work. On non-ferrous surfaces, use the supplied plastic clips for surface mounting.

YD-2565 two mounting modes: surface mounting with plastic clips on the left, magnetic mounting on ferrous metal surface on the right
Left: surface mounting with the supplied plastic clips. Right: magnetic mounting — the integrated N/S neodymium magnet strip snaps the profile directly onto any clean steel surface.

Per-metre parts list

Same 100 mm modular optical accessories as the YD-2575 — reflector cup, lens and black cover — plus three YD-2565-specific accessories: clip, end cap and the integrated magnet strip.

YD-2565 plastic end cap with cable hole for surface and magnetic mounting
End cap — seals the channel ends. Includes a cable hole for power feed-through.
YD-2565 plastic mounting clip for surface mounting on non-ferrous surfaces
Plastic mounting clip — supplied 2 per metre. Used for surface-mount mode on non-ferrous surfaces (aluminium, plasterboard, MDF).
YD-2565 N/S neodymium magnet strip for tool-free magnetic mounting on ferrous surfaces
N/S neodymium magnet strip — built into the profile's lower cavity. ~2.5 kg vertical pull per 100 mm segment on clean steel.

Per-metre parts list: 2 × plastic mounting clips · 2 × end caps · magnet strip is factory-installed per profile length · reflector cups / lenses / covers quote separately, per 100 mm module. For a 1 m continuous anti-glare line: 10 × cup + 10 × lens/cover + 10 × CSP1208 strip.

Frequently asked questions

What LED source does the YD-2565 accept?

Two distinct modes: (a) flexible COB / SMD tape up to 4.7 mm wide for the standard PC diffuser (Clear / Frosted / Opal); (b) CSP1208 rigid LED strip, 100 mm length, 14 beads per segment, for the reflector-cup / lens / black-cover options. The two modes cannot be mixed on the same cup — flexible strip does not fit the cup/lens/cover accessories.

How does magnetic mounting work on the YD-2565?

The YD-2565 has an N/S neodymium magnet strip built into a separate lower cavity of the aluminium profile, thermally isolated from the LED channel. The profile snaps directly onto any clean ferrous metal surface (steel cabinets, iron beams, tool boards). No screws, no adhesive, no tools — one person can install or remove a 1 m section in seconds. For non-ferrous surfaces, switch to surface mounting with the supplied clips.

How do I choose between YD-2565 and YD-2575?

YD-2575 is the advanced option — 8.6 × 7.3 mm, three mounting modes (surface / wall-lamp / 180° adjustable rotation), best for permanent architectural lighting where the beam direction needs to be aimed after installation. YD-2565 is the entry-level option — 7 × 8 mm, surface + magnetic mounting, best for fast installation, removable fixtures and rental / exhibition / seasonal display. Both share the same triple optical configuration (PC diffuser / reflector cup + lens / reflector cup + black cover) and 100 mm modular accessories.

Will the magnetic strip affect LED cooling?

No. The N/S neodymium magnet strip sits in a dedicated lower cavity of the aluminium profile, physically separated from the LED channel above. Heat from the LED tape is conducted through the aluminium body, not through the magnet. LED lifetime and lumen maintenance are the same as the non-magnetic surface-mounted version.

Minimum cut length and tolerance?

Cut to any length; standard tolerance ±0.5 mm. Tighter tolerances available on request.

Is the magnetic hold strong enough — will the profile fall off?

Each 100 mm magnet segment provides approximately 2.5 kg of vertical pull on a clean steel surface. A 1 m section of YD-2565 with LED and diffuser fitted weighs roughly 100–120 g — so the magnetic hold exceeds the profile's own weight by more than 20×. Vertical drop, vibration and casual contact will not dislodge it.

Get a quote, datasheet or sample

Tell us your project length, mounting surface (ferrous metal / non-ferrous), LED source (flexible COB or CSP1208 rigid), and which optical configuration (PC diffuser / lens+cup / black cover+cup). We will reply with a per-100 mm accessory breakdown and a sample lead time within one working day.

  • Cut-to-length service · ±0.5 mm standard tolerance
  • Tool-free magnetic mounting on ferrous metal surfaces
  • Same 100 mm optical SKUs as YD-2575 — single accessory range across the Mini series
  • CE · RoHS documentation supplied per shipment
